Flush Fit Flood Light 4" - White
Fixture Lumens
Collection
Delivering 1,500 fixture lumens of crisp white light, the ECLIPSE 4" Flush Fit Flood Light is built for flush mounting on cabin tops, T-tops,…
Features
Collection
Fixture Lumens
Product Description

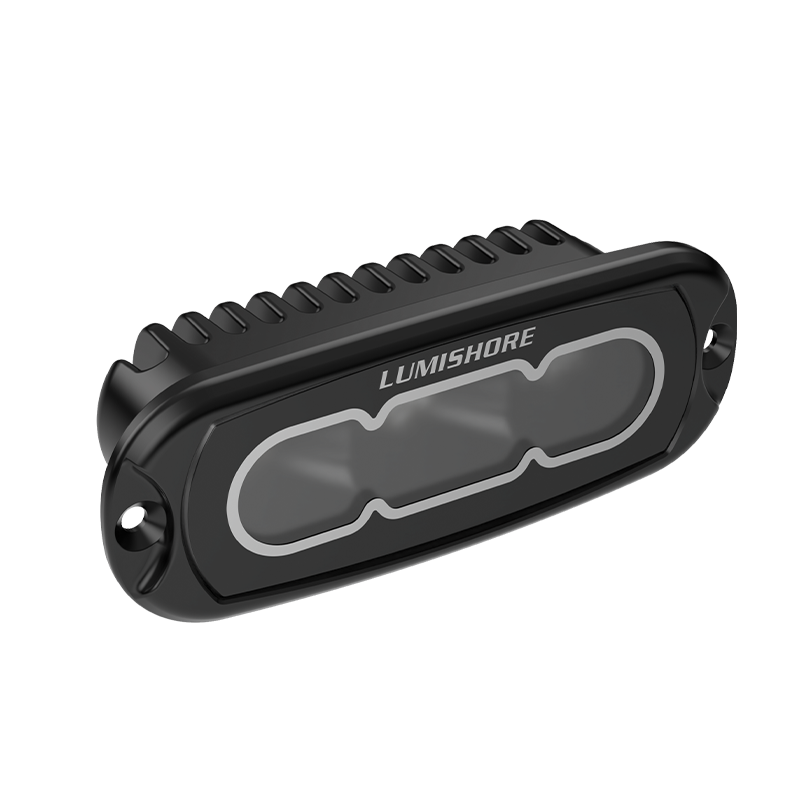

Delivering 1,500 fixture lumens of crisp white light, the ECLIPSE 4" Flush Fit Flood Light is built for flush mounting on cabin tops, T-tops, arches, transoms, and radar pedestals.
Its wide 70°–90° oval beam ensures bright, even coverage for deck lighting, cockpit visibility, or added security. Designed for the harshest marine environments, with IP68 protection and a marine-grade powder-coated aluminium housing. Dimmable as standard.
Available in white or black finish.
Specifications
- Available Colors:
- White (5500 K)
- Fixture Lumens (White):
- 1,500
- Number & Type Of LED:
- 3 x 10W White LED
- Control Options:
- On/Off Switch (Third party supplied), ECLIPSE Command Center, EOS-LUX Command Center or Compatible MFD
- Electrical Installation:
- Simple 2 Wire Connection
- Supply Voltage Range:
- 10.5—31 V DC
- Max Current Draw 12/24V:
- 1.7 A/0.9 A
- Beam Angle:
- 70° - 90° Oval Beam
- Water Ingress Protection Rating:
- IP68
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
