SUPRA

SY250

Weld-in (Metal Hull)
Key Features
Dual Color - Dual - Blue/White or White/Warm-White
Dual Color
15,500 Fixture Lumens
15,500
Fixture Lumens
60-110° Beam Angle
60-110°
Beam Angle
Description

The SY250 is the perfect flush mount weld-in light for steel and aluminum hull Superyachts, with a range of readily-available flange…

Features

Dual Color - Dual - Blue/White or White/Warm-White
Dual Color
15,500 Fixture Lumens
15,500
Fixture Lumens
60-110° Beam Angle
60-110°
Beam Angle
Optional Warranty
Optional
Warranty

Product Description

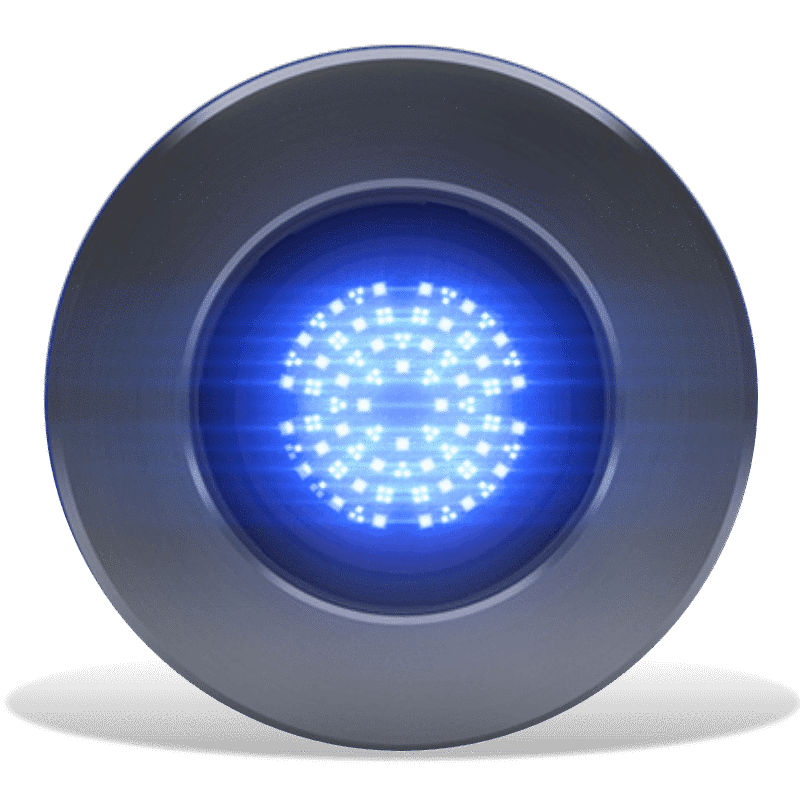

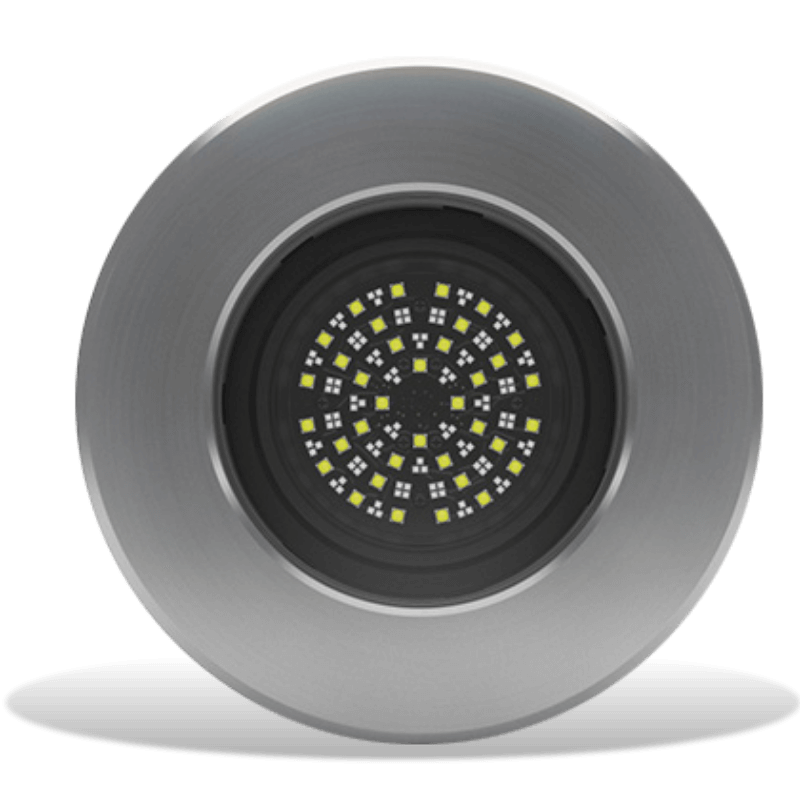

The SY250 is the perfect flush mount weld-in light for steel and aluminum hull Superyachts, with a range of readily-available flange angles.

Lumishore's Standard SY250 weld-in fixtures are the same size as the earlier SY150/180 models and offer a direct, bolt-on upgrade with increased light output!

The SY250 delivers ‘2-lights-in-1’ (blue and white or white and warm white) and a choice of ultra-wide (110°) or focused (60°) beam angles, to create the desired underwater lighting effect. This model packs 15,500 verified fixture lumens into a single weld-in unit.

Full Lloyd’s, ABS & DNV Type Approval including safety-critical EMC/EMI compliance testing, and optional 3-year warranty.

Specifications

AVAILABLE LED COLORS:
DUAL COLOR (BLUE & WHITE or WHITE & WARM WHITE)
LUMENS:
34,875
VERIFIED FIXTURE LUMENS (WHITE):
15,500
# OF HIGH POWER LEDS:
156
LED POWER - HICOB ARRAY:
YES
TYPICAL LED LIFE:
50,000+ HOURS
BEAM ANGLE (DEGREES):
60° or 110°
DRIVER:
External Driver
SUPPLY VOLTAGE:
90-240 V AC
MAX CURRENT DRAW:
1.4A
FLANGE MATERIAL:
ALUMINUM OR STAINLESS STEEL
USER CONTROL OPTIONS:
ENQUIRE
WHITE ONLY:
Y
BLUE ONLY:
Y
WHITE & BLUE SELECTABLE:
Y
STROBE INPUT:
Y
BRIGHTNESS ADJUST:
Y
Specifications

Downloads

The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.

Video

Controllers & Accessories

  • Flange angles available: 0, 10, 20, 30, 40, 50 degree

  • Driver Options:

    • SUPRA Integrated AC DMX Driver (39-0192)
    • SUPRA AC Driver (28-0080)
  • PSU: AC/DC PSU (39-0014)

  • Control Options:

  • Light Extension Cables: Available

  • DMX Cable Extensions: Available
