ECLIPSE

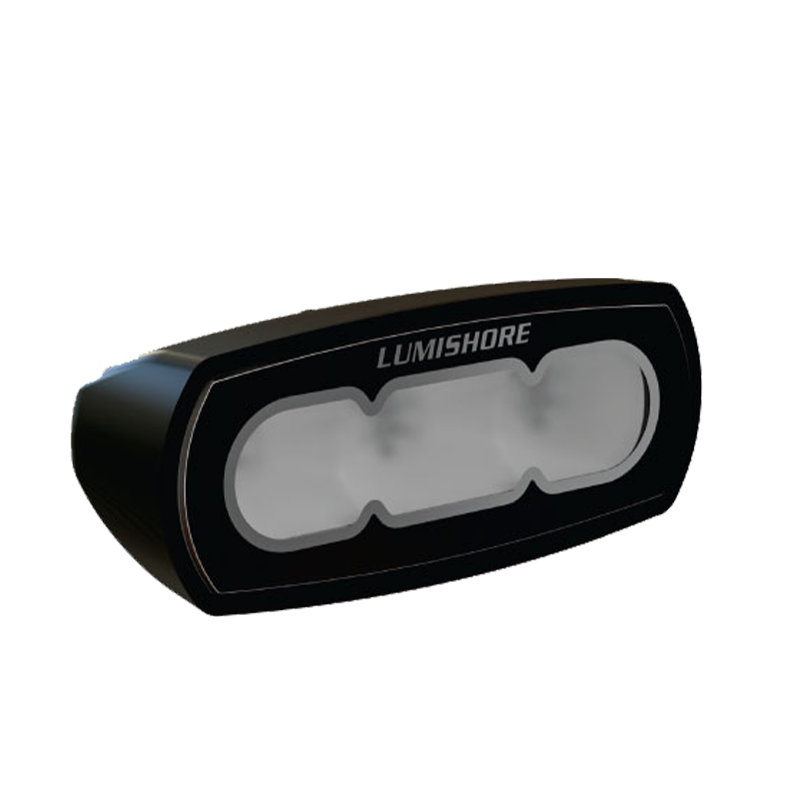

Flood Light 4" - White
Flood Lights
Key Features
Single Color
1,500
Fixture Lumens
Fixture Lumens
ECLIPSE
Collection
Collection
Description
The ECLIPSE 4” Flood Light delivers 1,500 fixture lumens of crisp white light, with a wide 70°–90° oval beam for optimal deck, cockpit, or…
Features
ECLIPSE
Collection
Collection
Single Color
1,500
Fixture Lumens
Fixture Lumens
Warranty
Product Description
The ECLIPSE 4” Flood Light delivers 1,500 fixture lumens of crisp white light, with a wide 70°–90° oval beam for optimal deck, cockpit, or security lighting.
Its low-profile, articulating design mounts easily to cabin tops, T-tops, arches, transoms, and more. Built for the harshest conditions with IP68 protection and a marine-grade powder-coated aluminium housing. Dimmable as standard.
Available in white or black finish.
Specifications
- Available Colors:
- White (5500 K)
- Fixture Lumens (White):
- 1,500
- Number & Type Of LED:
- 3 x 10W White LED
- Control Options:
- On/Off Switch (Third party supplied) or ECLIPSE Command Center
- Electrical Installation:
- Simple 2 Wire Connection
- Supply Voltage Range:
- 10.5—31 V DC
- Max Current Draw 12/24V:
- 1.7 A/0.9 A
- Beam Angle:
- 70° - 90° Oval Beam
- Water Ingress Protection Rating:
- IP68
Specifications
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
