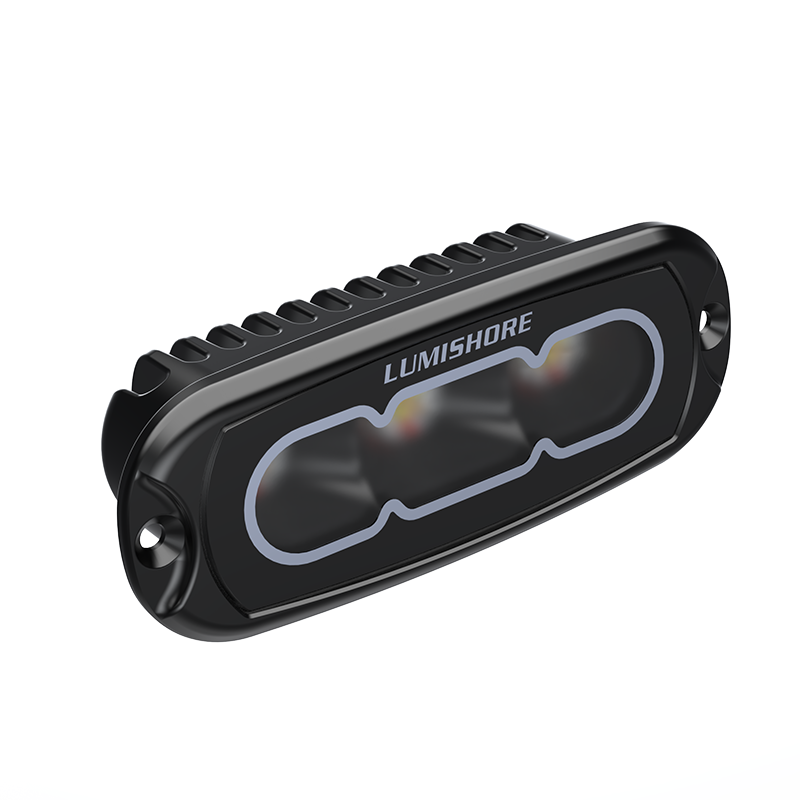

Flush Fit Flood Light 4"
CRGBW
Collection
Fixture Lumens
Engineered to provide a powerful illumination source seamlessly integrated into your vessel. Whether it's for enhancing your deck and cockpit…
Features
Collection
CRGBW
Fixture Lumens
Beam Angle
Product Description
Engineered to provide a powerful illumination source seamlessly integrated into your vessel. Whether it's for enhancing your deck and cockpit ambiance or ensuring security, Lumishore's Flush Fit Flood Lights are the perfect solution.
Measuring at 4 inches (10cm) in size, Flush Fit Flood Lights boast an exceptionally broad oval beam angle spanning from 70° to 90°. Custom diffusion optics guarantee consistent and smoothly blended beam colors.
What sets these LUX Flush Fit Flood Lights apart is their remarkable ability to harmoniously combine warm and cold white lighting, as well as the colors red, green, and blue, all within a single lighting unit. This versatility is unparalleled in the market.
Specifically crafted for seamless exterior mounting on cabin tops, T-tops, arches, transoms, and radar pedestals. These lights are engineered to withstand the most challenging marine conditions, boasting an IP68 rating, and are encased in a marine-grade powder-coated aluminum housing. Their exquisite craftsmanship enhances your boat's aesthetics even when they are not in active use.
Simple control via a switch, and the option for seamless integration with your compatible MFD and/or Lumishore Display. They also come with standard dimmable control for added flexibility.
** Black housing option available **
Specifications
- Available colors:
- White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB
- Lumens:
- 2,360
- Fixture Lumens:
- 1,050
- Number & Type Of LED:
- Warm White, Cold White, Red, Green and Blue (5 Channel)
- LED Power HICOB Array:
- Yes
- Typical LED Life:
- 50,000+ Hours
- Warranty:
- 3 Years
- User Control Options:
- EOS-LUX Command Center or Customer Supplied Momentary Switch
- Electrical Installation:
- Simple 3 Wire Connection (see installation manual)
- Housing Type:
- Powder Coated Aluminium Body with Frosted Lens
- Driver:
- Multi-Channel Internal
- Supply Voltage Range:
- 10.5—31 V DC
- Max Current Draw 12/24V:
- 1.7 A/0.9 A
- Beam Angle:
- 70° - 90° Oval Beam
- Water Ingress Protection Rating:
- IP68
Downloads
The product specification sheet and installation manual can be downloaded below. If you require any further information please get in touch.
What It Comes With
- One (1) LUX Flush Fit Flood Light 4"
Controllers & Accessories
- On/Off Switch (Third party supplied)
- EOS-LUX Command Center
-
Conversion cables and SD cards to compatible MFD’s (plug and play connect):
Garmin Conversion Cable (60-0372)
Simrad/B&G Conversion Cable (60-0372)
Furuno SD Card (60-0377) - LUX Light Control Module
- Optional Lumishore Display
